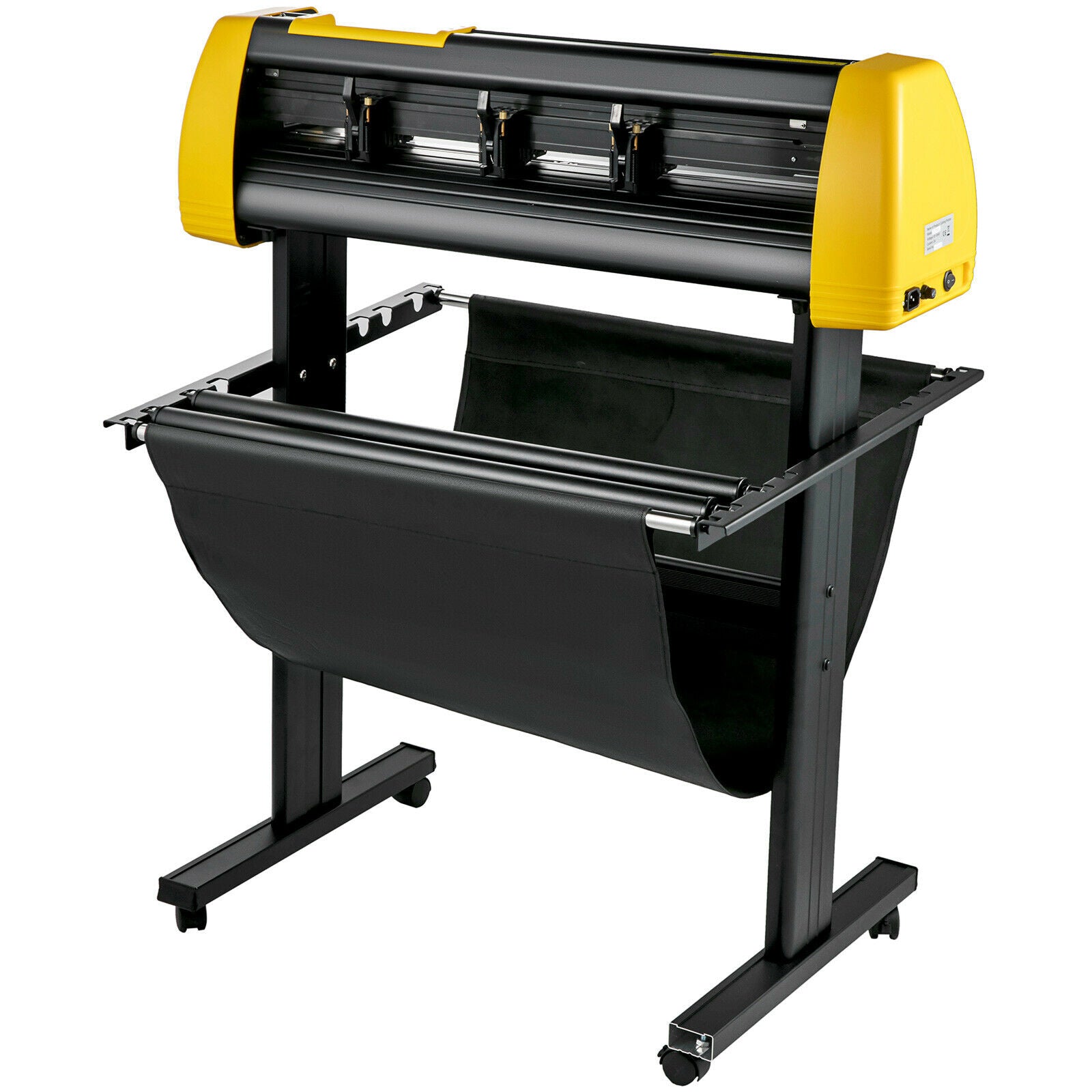

GSN-720CC Sign Machine (Optical Eye)

Sale price Price $1,095.00 Regular price $1,495.00 Unit price  per

Tax included. Shipping calculated at checkout.

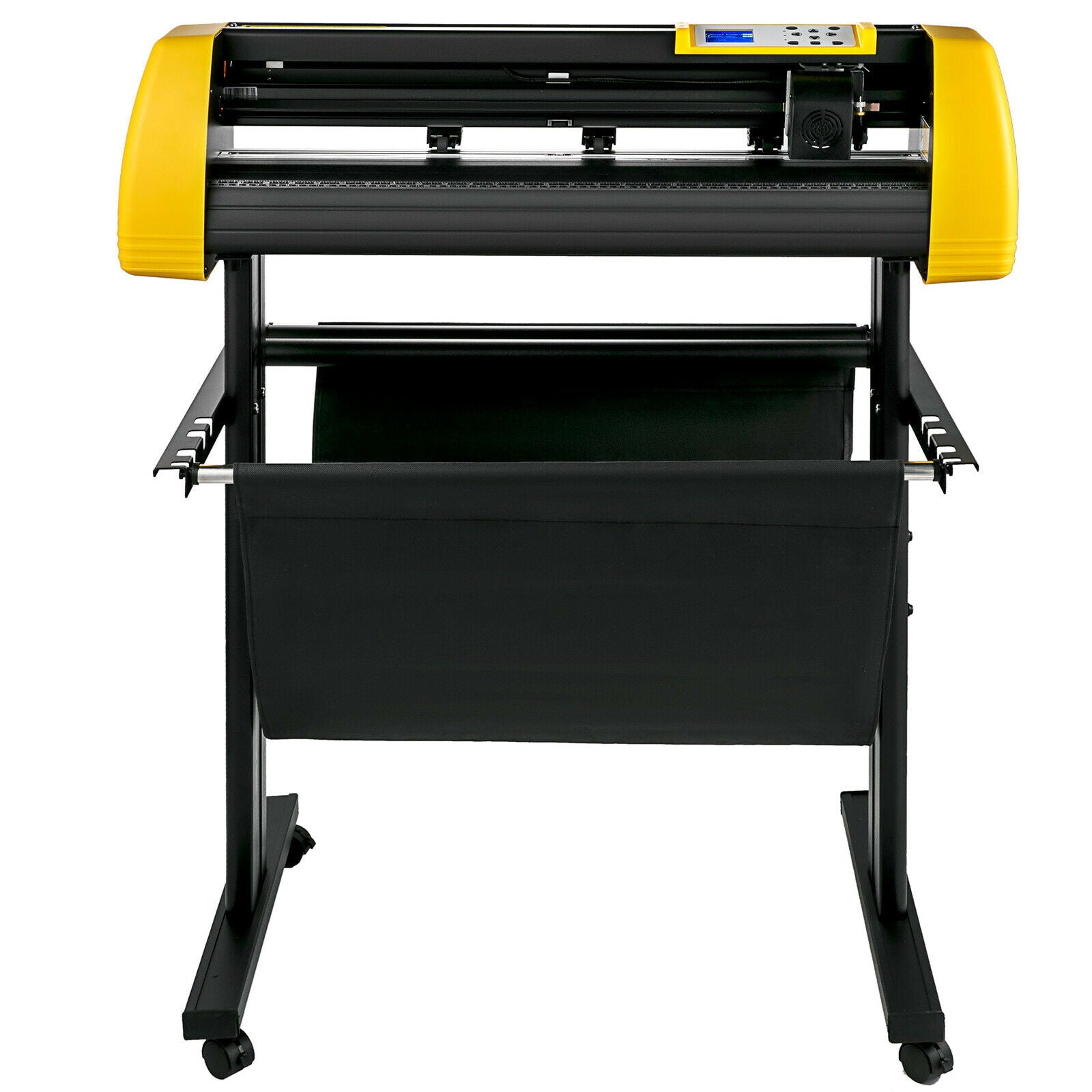

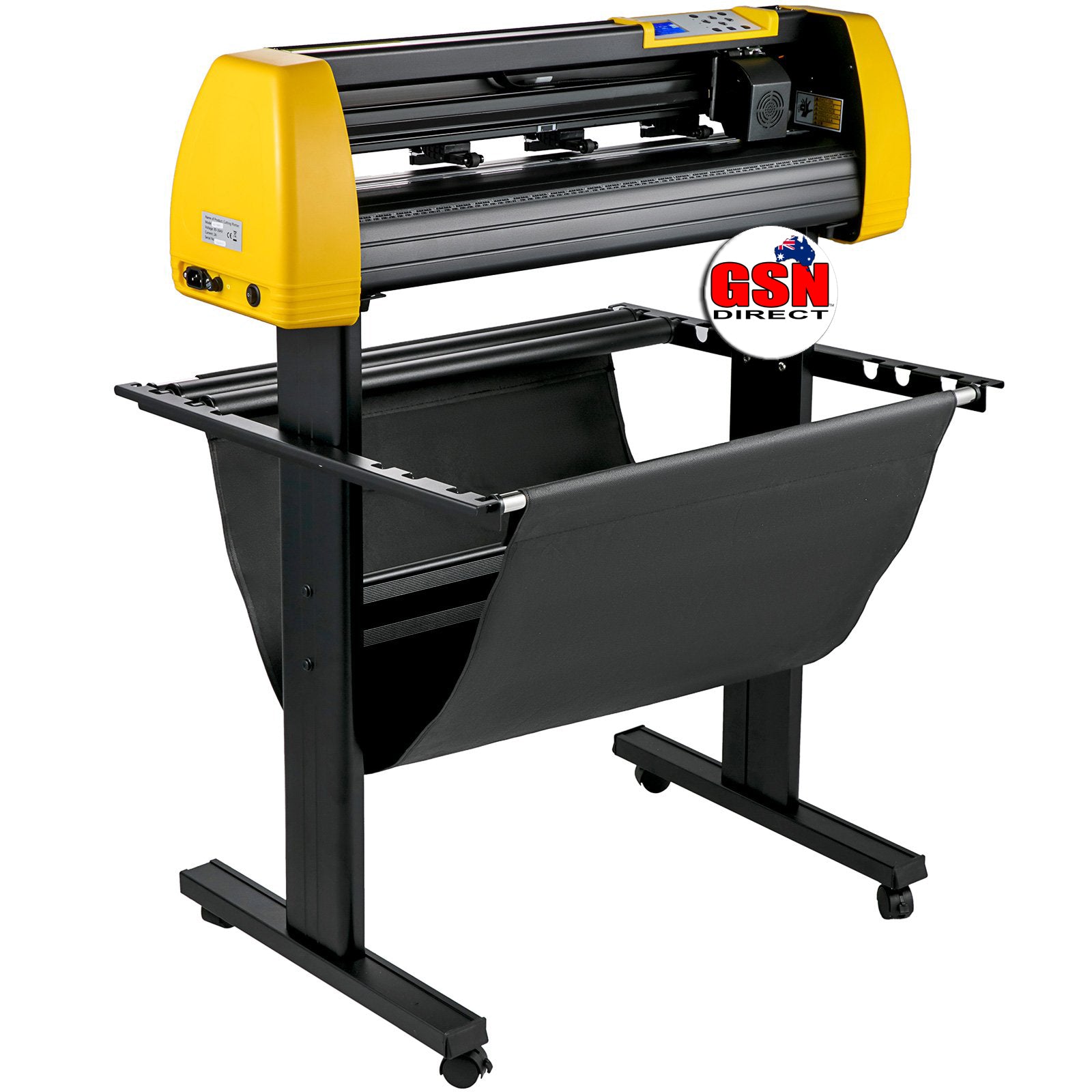

The "All New" GSN-720CC is loaded with advanced features and performance improvements previously not seen in the previous models. This "Industry Standard Size Plotter" is now equipped with a camera, like an optical eye for accurate cutting. It is robustly constructed with a durable step motor driver, stable power with high speed and low noise levels, and it can cut various intricate lettering and patterns, including paper, cardstock, vinyl, and fabric.

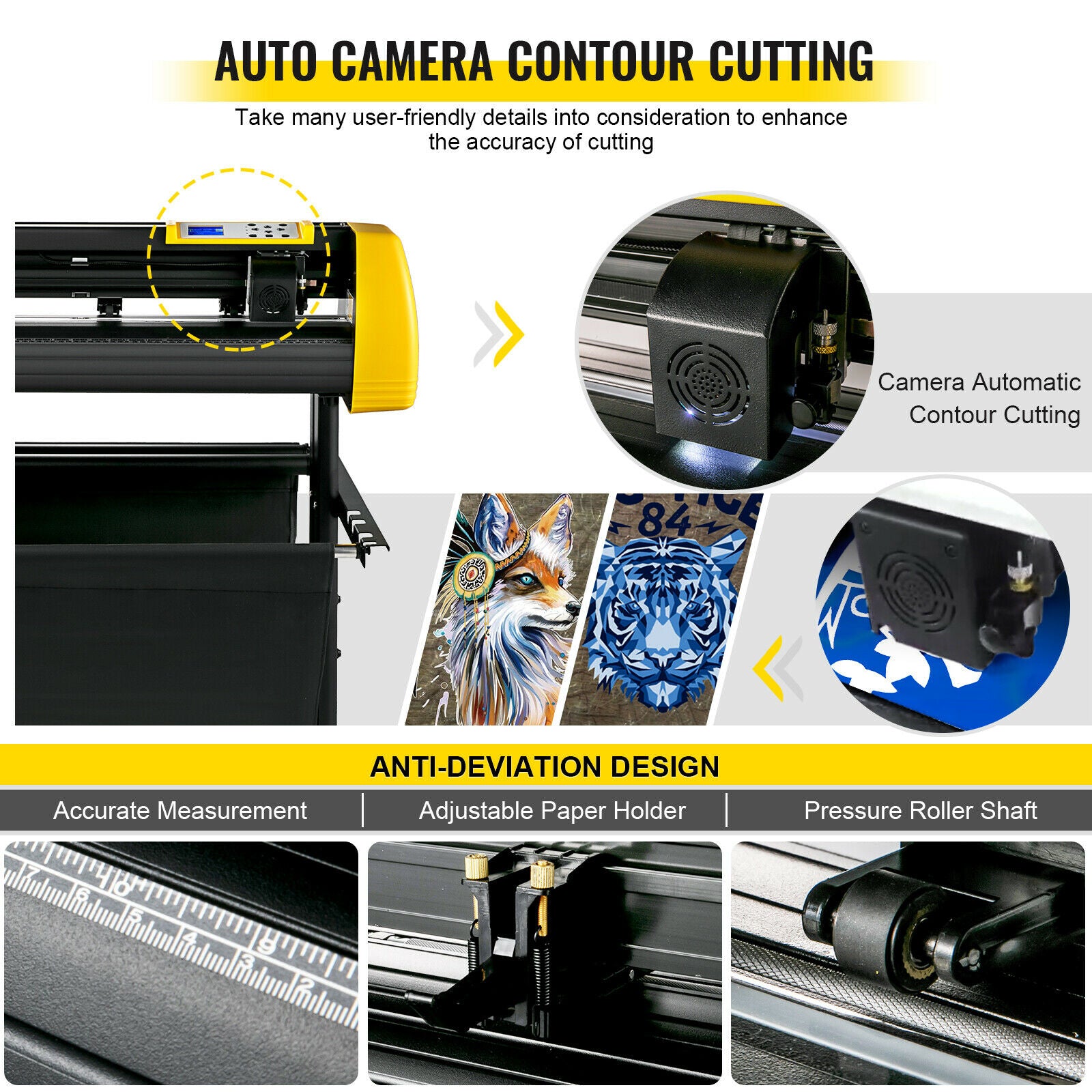

  • AUTO CAMERA CONTOUR CUTTING
    The added camera on the fully upgraded GSN-720CC plotter acts like an "optical eye" for superior tracking capability and advanced contour cutting performance. Equipped with the ARM motherboard & 128 MB high-speed cache memory. Three double-spring pinch rollers match with an aluminium knurling stick to ensure that the paper feed will not deviate even on long-distance cuts.

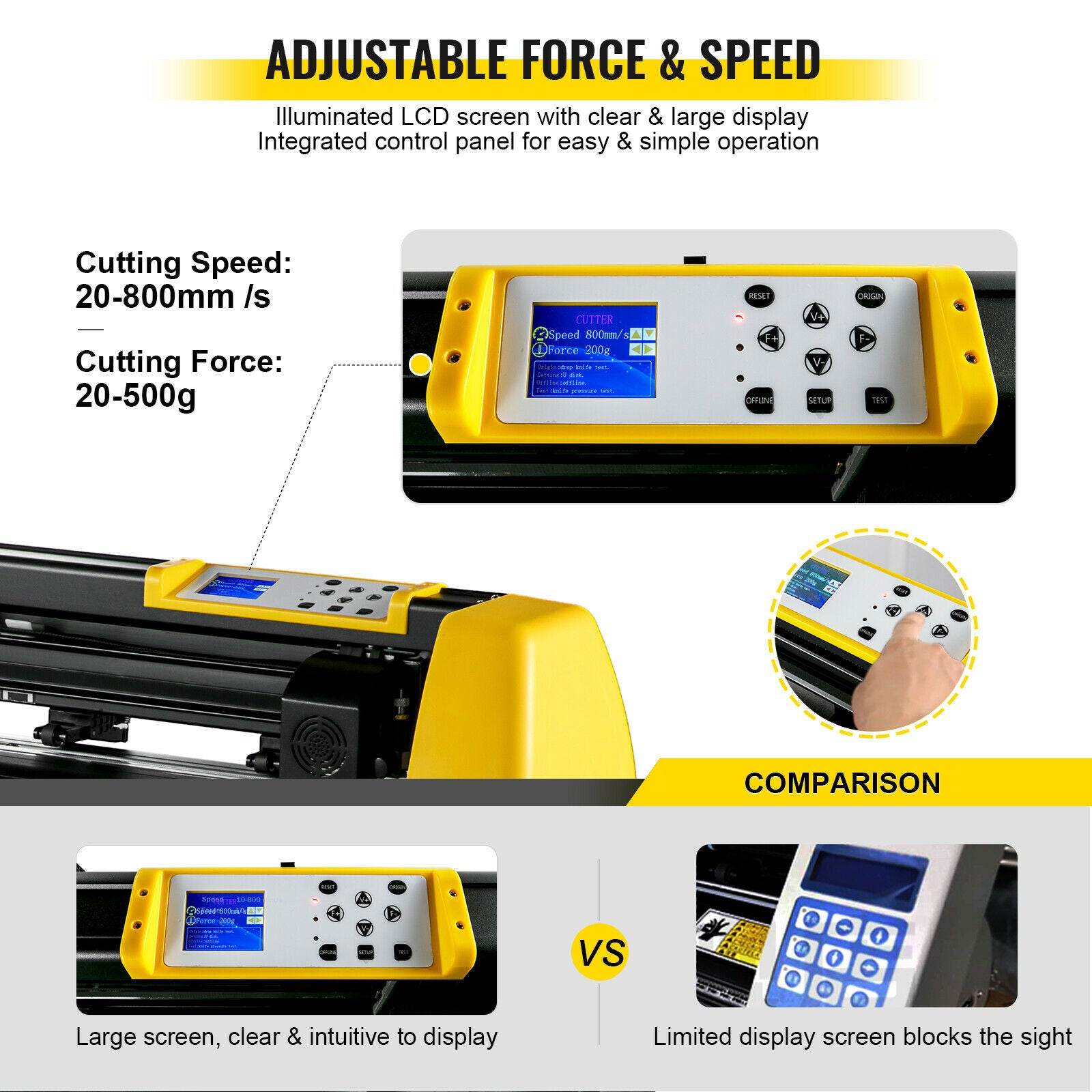

  • DIGITAL CONTROL PANEL
    Featuring an illuminated LCD screen and a large control panel, which makes sign-making easier. The vinyl printer features a cutting force of 20-500g and speed to 20-800mm/s, providing precise cutting reliability.

  • HIGH COMPATIBILITY

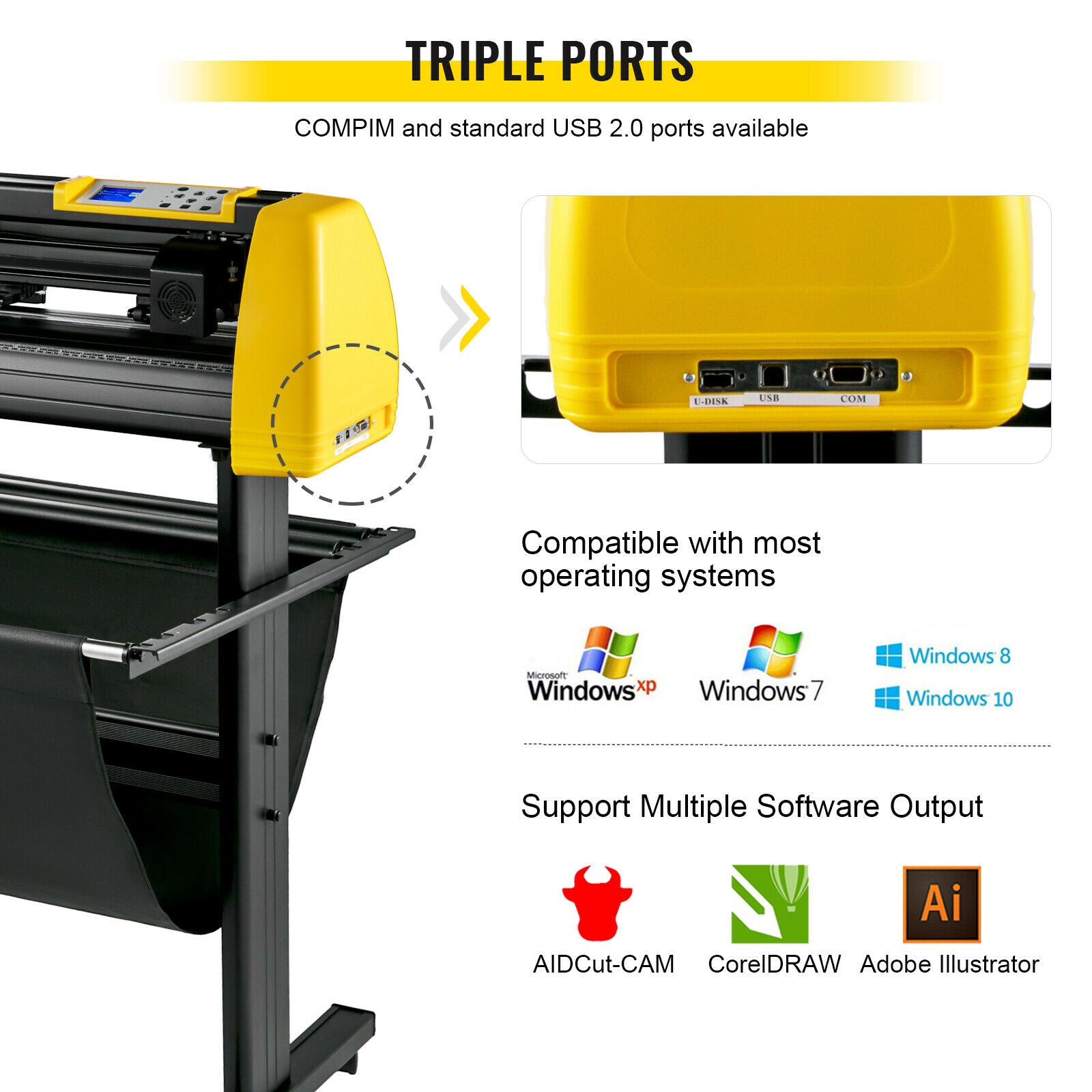

    Available with COMPIM, USB interface & U-disk port for easier connection. Support DM/PL, HP/GL multiple languages. System: Pentium processor-based PC or compatible computer (Windows), Windows XP/VISTA/7/8/10 (32&64). NOT compatible with the Mac system.

  • VERSATILE USE
    The GSN-720CC gives you access to take your creative vision from your mind to reality with an easily customizable and intuitive interface. Widely used in cutting sticker and decal vinyl, scrapbook papers, card stock, vinyl lettering, pinstriping, and general signage. The included pen holder allows for the production of drawings such as architectural plans.

Specifications

  • Max Material Feed: 720 mm
  • Max Cutter Width: 630 mm
  • Cutter Pressure: 20-500 g
  • Cutting Speed: 20-800 mm/s
  • Memory: 128 MB
  • Repetition Accuracy: 0.127 mm
  • Cutting Thickness: ≤1 mm
  • Buffer Speed: 1-4 M
  • Resolution Ratio: 0.0245 mm/step
  • Language Format: DMPL/HPGL

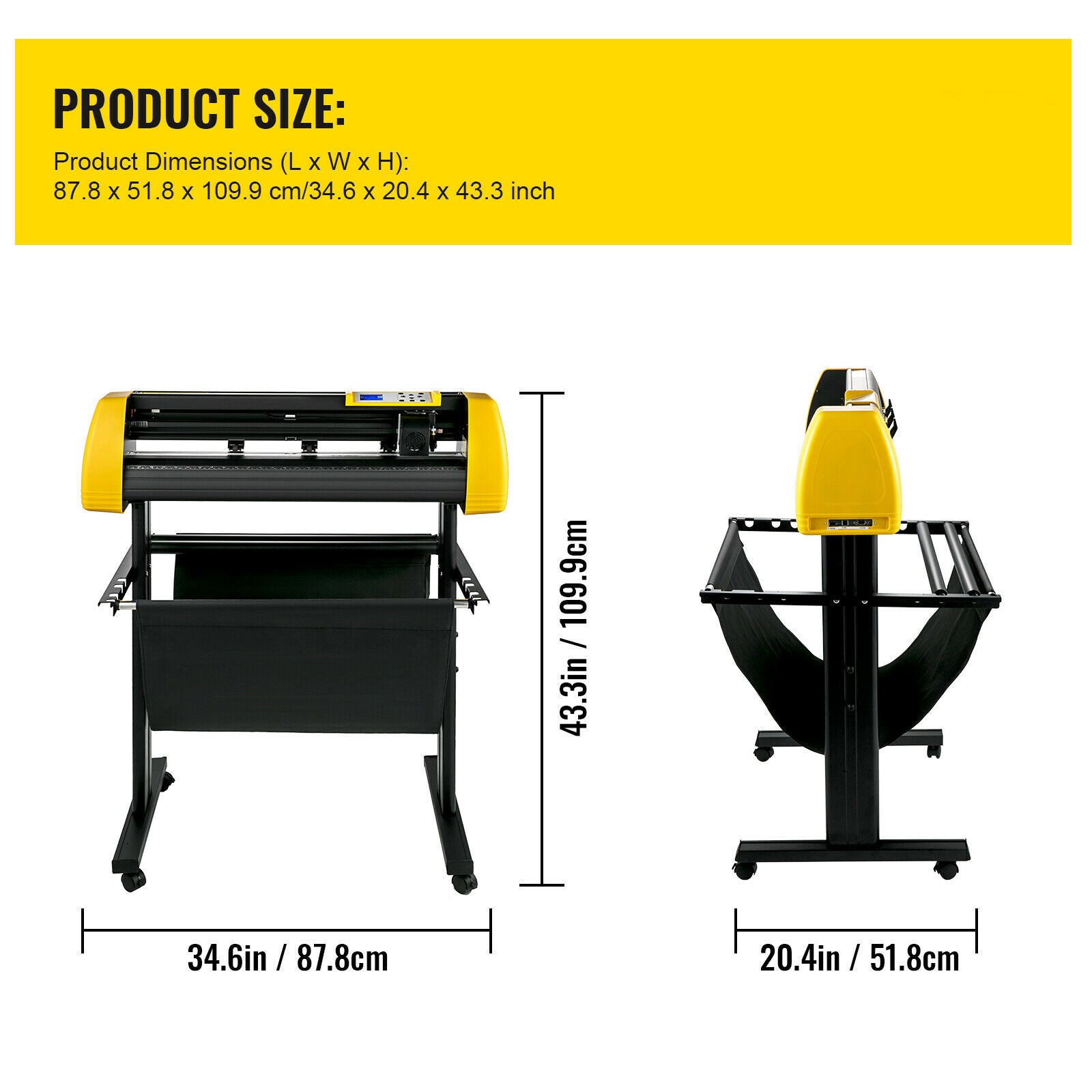

  • Product Size: 87.88 x 51.81 x 109.98 cm

Package Contents

  • 1 x GSN-720CC Vinyl Cutter Plotter Machine
  • 1 x SIGN MASTER Software
  • "Bonus Software Pack" More info...

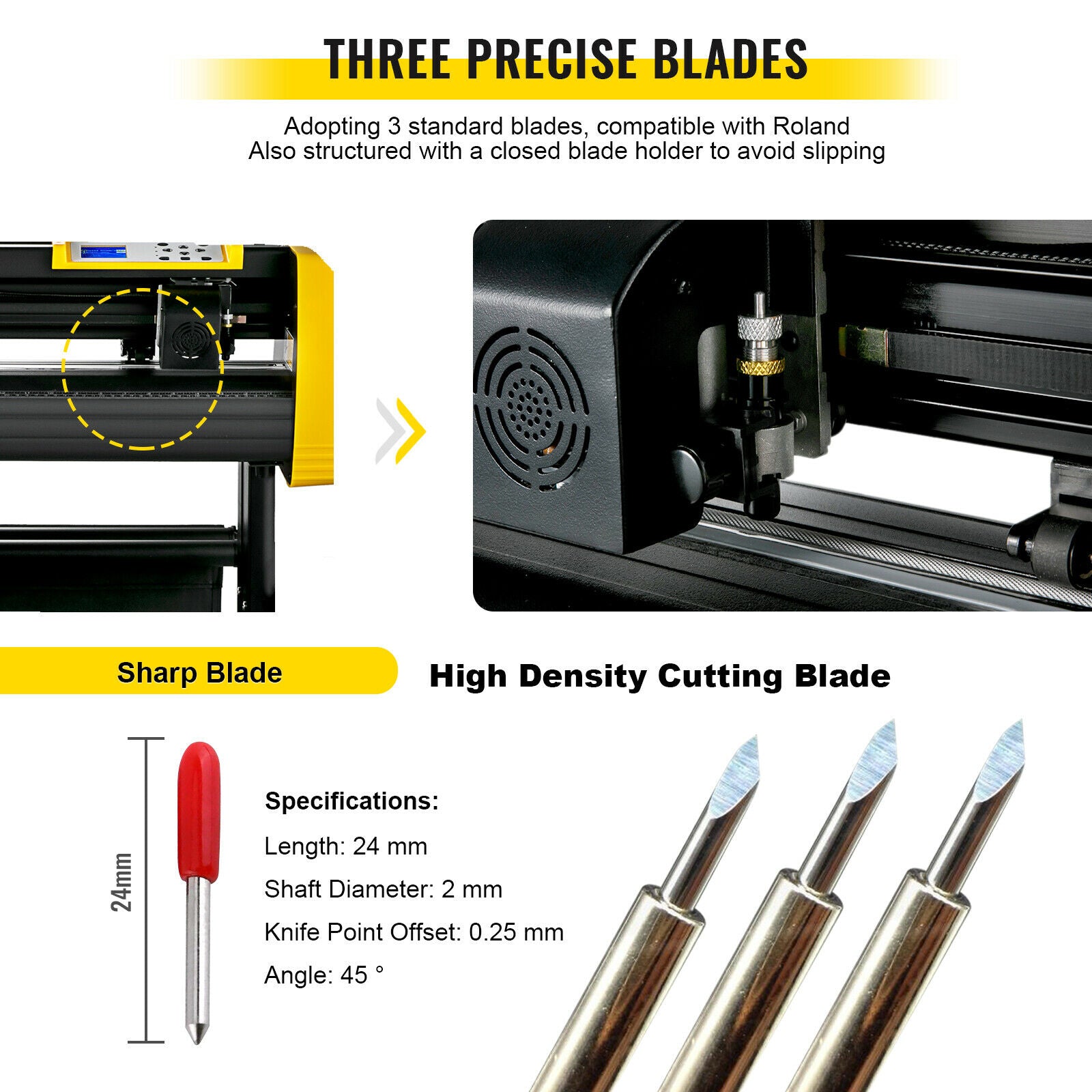

  • 1 x Roland Compatible Blade Holder
  • 3 x Blades
  • 1 x Pen Holder
  • 3 x Cables (USB/Serial/Power Cord)
  • 1 x USB Flash Disk
  • 1 x User Manual
  • 1 x Floor Stand Kit
